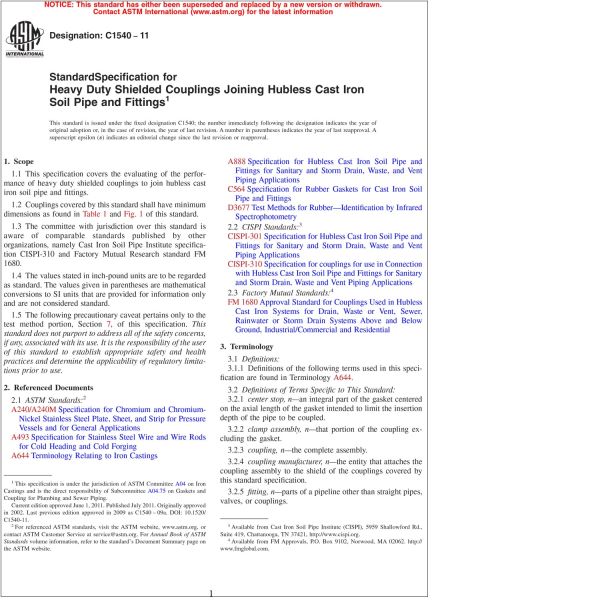

ASTM C1540—11 Standard Specification for Heavy Duty Shielded Couplings Joining Hubless Cast-iron Soil Pipe and Fittings (PDF Download)
PURCHASE THE PDF DOWNLOAD VERSION AND GET IMMEDIATE ACCESS!!! This convenient option is a searchable PDF download that requires a PDF Reader. This option is mobile friendly and compatible with all devices, including mobile tablets and smart phones. The PDF Download is licensed per individual in which the individual can place on up to four electronic devices for their personal use. Distribution of the PDF is not permitted. For a volume license the PDF is licensed to the person in which it is assigned. Use on a local area network or other network is not permitted.
ALL PDF DOWNLOAD SALES ARE FINAL.
For ICC certification examination rules related to exam reference materials review Test Site Regulations
1.1 This specification covers the evaluating of the performance of heavy duty shielded couplings to join hubless cast iron soil pipe and fittings.
1.2 Couplings covered by this standard shall have minimum dimensions as found in Table 1 and Fig. 1 of this standard.
1.3 The committee with jurisdiction over this standard is aware of comparable standards published by other organizations, namely Cast Iron Soil Pipe Institute specification CISPI-310 and Factory Mutual Research standard FM 1680.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 The following precautionary caveat pertains only to the test method portion, Section 7, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
TABLE 1
| Nominal Pipe Size | Coupling Width |
|---|---|
| 1½ to 4 in. (38 to 100 mm) | 3 in. (76 mm) Minimum Width |
| 5 to 10 in. (127 to 254 mm) | 4 in. (100 mm) Minimum Width |
| 12 to 15 in. (305 to 381 mm) | 5½ in. (140 mm) Minimum Width |
FIG. 1 Typical Center Stop Detail
This standard is referenced in the 2015 International Residential Code® and 2015 International Plumbing Code®.
| Description: | 1.1 This specification covers the evaluating of the performance of heavy duty shielded couplings to join hubless cast iron soil pipe and fittings. 1.2 Couplings covered by this standard shall have minimum dimensions as found in Table 1 and Fig. 1 of this standard. 1.3 The committee with jurisdiction over this standard is aware of comparable standards published by other organizations, namely Cast Iron Soil Pipe Institute specification CISPI-310 and Factory Mutual Research standard FM 1680. 1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.5 The following precautionary caveat pertains only to the test method portion, Section 7, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. TABLE 1
This standard is referenced in the 2015 International Residential Code® and 2015 International Plumbing Code®. |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Pages | 5 | ||||||||
| Code Year | 2015 | ||||||||
| Publisher | ASTM International | ||||||||
| Language | English |
